Triple DES

What is Triple DES?

Triple Data Encryption Standard (Triple DES or 3DES) is a symmetric block cipher algorithm that applies the DES algorithm three times to each block of data. It was designed to address known weaknesses in DES while remaining compatible with existing DES-based infrastructure.

Triple DES is now considered a legacy standard, deprecated by major standards bodies, and largely replaced by Advanced Encryption Standard (AES).

How does Triple DES work?

Triple DES encrypts data by running DES three times in sequence using separate cryptographic keys. It follows an encrypt–decrypt–encrypt (EDE) pattern:

First encryption: The plaintext is encrypted with the first key (K1).
Decryption stage: The output is processed using DES in decryption mode with a second key (K2).
Final encryption: The result is encrypted once more with a third key (K3) to produce the final ciphertext.

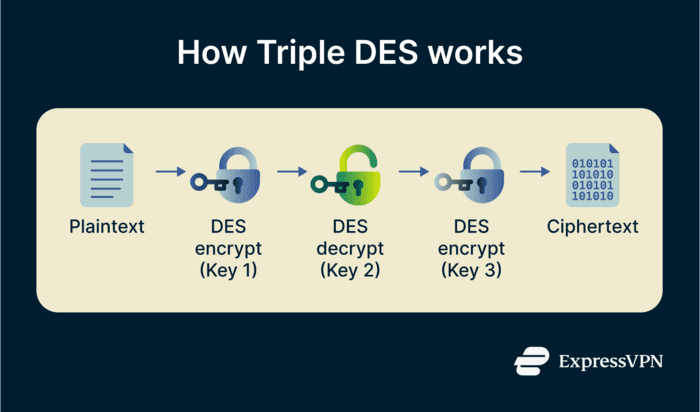

Triple DES operates on 64-bit blocks, the same block size as DES. Repeating the algorithm increases resistance to brute force attacks compared with single DES. Diagram showing the Triple DES encryption process where plaintext passes through three stages: DES encryption with key 1, DES decryption with key 2, and DES encryption with key 3 to produce ciphertext.

Key length options in Triple DES

Triple DES supports different keying options.

Keying option	Relationship between keys	Effective key strength
3-key 3DES	K1 ≠ K2 ≠ K3	112 bits
2-key 3DES	K1 = K3 ≠ K2	80 bits
DES equivalent	K1 = K2 = K3	56 bits

The 2-key and 3-key variants were commonly used in practice. The DES-equivalent option provides no additional security and is not used in modern systems.

Why is Triple DES important?

Triple DES was introduced in the late 1990s to address known vulnerabilities in DES, particularly its short 56-bit key length, which had become susceptible to brute force attacks. It allowed organizations to improve security without completely replacing their existing DES-based infrastructure.

For several decades, Triple DES cryptography served as a transitional standard between early encryption methods and modern standards such as AES. It also demonstrated how iterative application of an existing cipher could extend its useful lifespan.

Today, its importance is mainly historical and practical, as it still appears in legacy systems and during cryptographic migrations.

Where is Triple DES used?

Most modern platforms have migrated away from Triple DES, but it still appears in older systems that have not yet been upgraded.

Legacy environments where it can still be found include the following:

Banking infrastructure and payment card processing systems.
Older hardware security modules (HSMs).
Legacy enterprise applications.
ATM networks.
Systems undergoing gradual cryptographic modernization.

Triple DES vs. AES

AES has largely replaced Triple DES due to stronger security, larger block sizes, and significantly better performance.

Feature	Triple DES	AES
Block size	64 bits	128 bits
Key length	80 bits (2-key) or 112 bits (3-key)	128, 192, or 256 bits
Performance	Slower due to three encryption passes	Faster and more efficient
Security status	Deprecated by the National Institute of Standards and Technology (NIST); disallowed from 2024	Current global encryption standard
Typical use	Legacy systems	Modern applications and protocols

FAQ

Is Triple DES still secure?

Triple Data Encryption Standard (3DES) was deprecated by the National Institute of Standards and Technology (NIST) in 2017 (formally documented in NIST SP 800-131A) and disallowed for most uses from 2024 onward due to structural limitations and known weaknesses.

What is the difference between DES and Triple DES?

Data Encryption Standard (DES) encrypts data once using a single 56-bit key. Triple DES applies the DES algorithm three times using two or three independent keys, substantially increasing resistance to brute force attacks.

Why is Triple DES being phased out?

Triple Data Encryption Standard (3DES) is being phased out because it is slower, uses a smaller block size, and provides weaker security compared with modern algorithms such as Advanced Encryption Standard (AES).

How does Triple DES compare with AES?

The Advanced Encryption Standard (AES) offers stronger security, faster processing, and a larger 128-bit block size, making it the preferred standard for modern cryptographic applications.

Is Triple DES still used in banking?

The National Institute of Standards and Technology (NIST) disallowed Triple Data Encryption Standard (3DES) for new applications from 2024, though it may still be found in some legacy banking and payment systems that have not yet completely migrated to newer standards.
